8.7/15KV YJLHV22-Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Steel Tape Armoured Power Cable
APPLICATION
YJLHV22-Aluminum Alloy Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable.
AAAC XLPE STA Armoured Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 26/35KV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.
BASIC INFORMATION
Code Name
YJLHV22
Rated Voltage (Uo/U)
8.7/10KV、8.7/15KV
Cable Structure

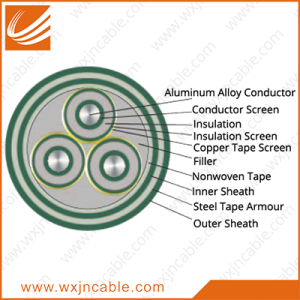

Aluminum Alloy Conductor/XLPE Insulation/PVC Inner Sheath/Steel Tape Armoured/PVC Outer Sheath
CONSTRUCTION
Conductor
Number of conductors:1,3
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Sheath
PVC(Polyvinyl Chloride) according to IEC
Metal Screen
Copper Tape Screen
Armoured Layer
Steel Tape
CHARACTERISTICS
Conductor Temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit Temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation Temperature
Ambient temperature under installation shall not be below 0℃
Minimum Bending Radius
The bending radius of cable: (D-Diameter of cable)
For Three Core Cable————————————-≥10D
For Single Core Cable————————————-≥15D
| Nominal Cross Sectional Area(mm²) | No.of Cores | Nominal Insulation Thickness(mm) | Approx Overall Diameter(mm) | Cable Weight Max(kg/km) |
|---|---|---|---|---|
| 25 | 1 | 4.5 | 25.6 | 767 |
| 35 | 1 | 4.5 | 26.6 | 840 |
| 50 | 1 | 4.5 | 27.9 | 929 |
| 70 | 1 | 4.5 | 30.8 | 1047 |
| 95 | 1 | 4.5 | 32.7 | 1197 |
| 120 | 1 | 4.5 | 34.1 | 1575 |
| 150 | 1 | 4.5 | 35.9 | 1743 |
| 185 | 1 | 4.5 | 37.6 | 1901 |
| 240 | 1 | 4.5 | 39.9 | 2173 |
| 300 | 1 | 4.5 | 42.5 | 2470 |
| 400 | 1 | 4.5 | 45.7 | 2866 |
| 500 | 1 | 4.5 | 49.4 | 3345 |
| 630 | 1 | 4.5 | 53.4 | 3895 |
| 25 | 3 | 4.5 | 50.2 | 2739 |
| 35 | 3 | 4.5 | 52.3 | 2991 |
| 50 | 3 | 4.5 | 55.7 | 3383 |
| 70 | 3 | 4.5 | 59.4 | 3831 |
| 95 | 3 | 4.5 | 63.2 | 4285 |
| 120 | 3 | 4.5 | 66.7 | 4870 |
| 150 | 3 | 4.5 | 70.5 | 575 |
| 185 | 3 | 4.5 | 74.1 | 6061 |
| 240 | 3 | 4.5 | 79.5 | 7041 |
| 300 | 3 | 4.5 | 86.2 | 8845 |
| 400 | 3 | 4.5 | 93.5 | 10343 |
| 500 | 3 | 4.5 | 101.2 | 12072 |
| 630 | 3 | 4.5 | 109.3 | 14082 |
